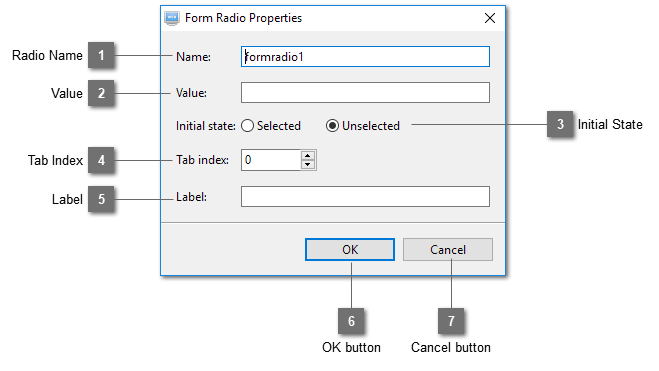

Form Radio Properties Dialog

Form Radio Properties Dialog
1

Radio Name

1. Radio Name
Enter the name of this radio button. If you have several radio buttons which act as a group, use the same name for each button. For example, a form allows a choice among three colors such as "Red", "Green" and "Blue". Set the values of the radio buttons to "Red", "Green" and "Blue" respectively but set all three names to  "ItemColor". So when the form is submitted, the name "ItemColor" will go with the value of the selected radio button.
2

Value

2. Value
Enter value for this radio button.
3

Initial State

3. Initial State
Select the initial state of the radio button.
4

Tab Index

4. Tab Index
Set the tab stop of this radio button.
5

Label

5. Label
Enter the label of this radio button.
6

OK button

6. OK button
Save the properties.
7

Cancel button

7. Cancel button
Cancel saving the properties.
