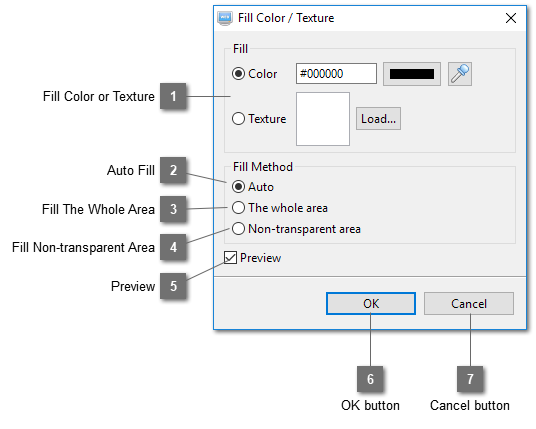

Fill Color / Texture Dialog

Fill Color / Texture Dialog
1

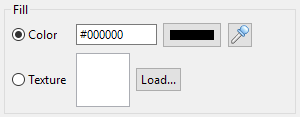

Fill Color or Texture

1. Fill Color or Texture
Fill the current layer with the selected color or texture. Click "Load" button to open the Load Texture Dialog to select a texture. If there is a selected area then only the area will be filled.
2

Auto Fill

2. Auto Fill
Select auto to automatically select fill methods. If the whole layer is transparent, then "filling the whole area" method will be used otherwise the "filling non-transparent area" method will be used.
3

Fill The Whole Area

3. Fill The Whole Area
Select "The whole area" to fill the whole layer with the selected color or texture without paying attention to whether part of the layer is transparent.
4

Fill Non-transparent Area

4. Fill Non-transparent Area
Select this option to fill the non-transparent part of the layer only.
5

Preview

5. Preview
Select this option to preview the results in real-time.
6

OK button

6. OK button
Click OK to apply the color or texture to the selected layer.
7

Cancel button

7. Cancel button
Cancel filling color or texture.
