Lightbox Properties Dialog

Lightbox Properties Dialog

Lightbox is a popup dialog which overlays above the current page for showing larger images of the corresponding thumbnails on the page. For example, we have three thumbnail images, each has a link to a larger image.

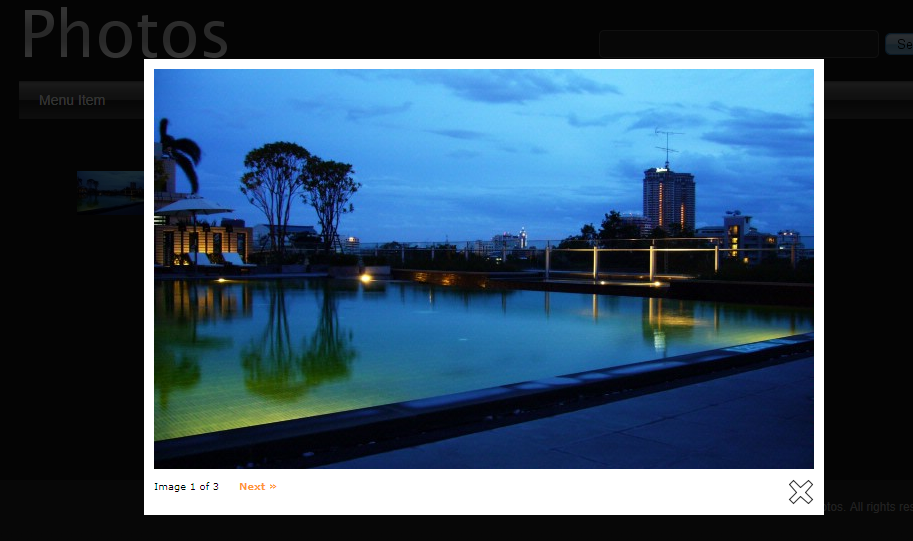

When one of this thumbnail is clicked, the Lightbox dialog will be shown just like the image below.

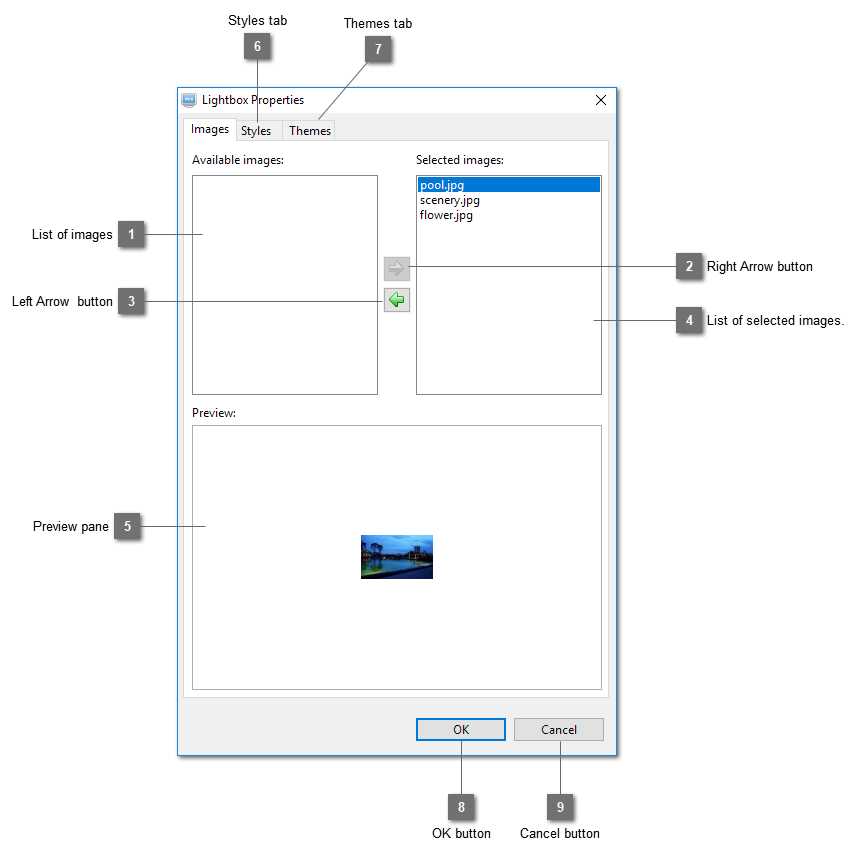

1

List of images

1. List of images
Show a list of images that can be added to Lightbox. Eligible images are the one with a link to another normal larger image.
2

Right Arrow button

2. Right Arrow button
Click this button to add the selected image from the list on the left to show on the Lightbox.
3

Left Arrow  button

3. Left Arrow  button
Remove the selected images from the Lightbox.
4

List of selected images.

4. List of selected images.
Show a list of images which will be shown using Lightbox.
5

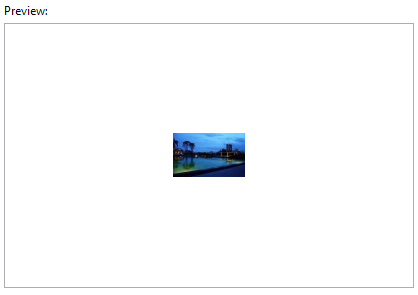

Preview pane

5. Preview pane
Preview the selected image.
6

Styles tab

6. Styles tab
7

Themes tab

7. Themes tab
8

OK button

8. OK button
Click OK to save the settings.
9

Cancel button

9. Cancel button
Cancel saving the settings.
